Add-on optics
In some applications it is necessary to create a specified measuring diameter in a specified distance. This can be realized with customer specific optics. JETI offers a various models of special imaging optics for specbos 1211-2, specbos 1211UV-2, spectraval 1501 and spectraval 1511 spectroradiometer. Please send both data and you will get an offer for this specification:
Part number:ACC 009/d_D (measuring diameter d (mm) in the measuring distance D (mm))

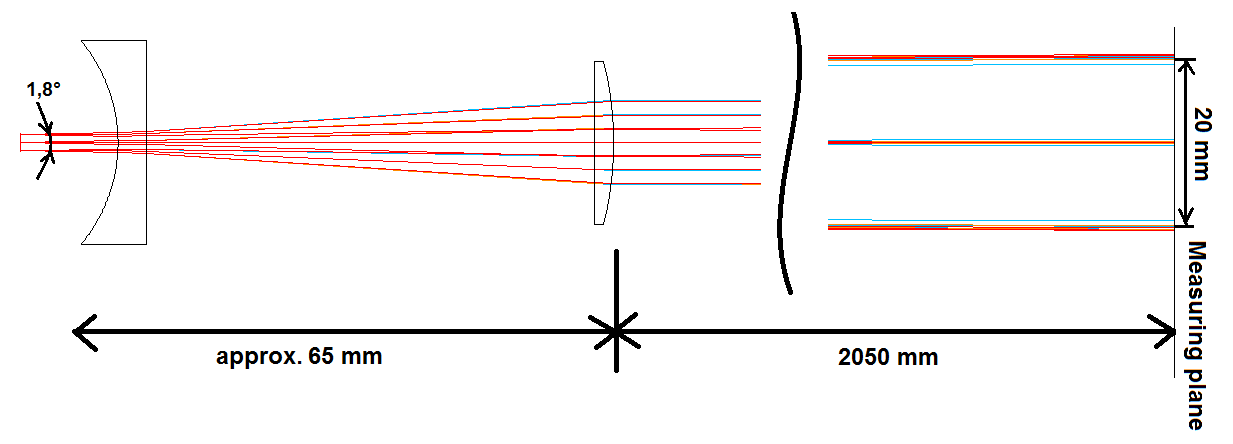

Example: ACC 009/20_2050: d = 20 mm and D = 2050 mm
Special imaging optics for specbos 1211 and spectraval 1501 / 1511
| Model | Meas. diameter | Meas. distance | Part number |
| specbos 1211 | 210 mm | 420 mm | ACC 009/1/210_420 |
| specbos 1211 | 20 mm | 2050 mm | ACC 009/1/20_2050 |
| specbos 1211 | 120 mm | 1300 mm | ACC 009/1/120_1300 |
| specbos 1211 | 10 mm | 700 mm | ACC 009/1/10_700 |
| specbos 1211 | 10 mm | 1020 mm | ACC 009/1/10_1020 |
| specbos 1211UV-2 | 1.5 mm | 56 mm | ACC 009/1/1.5_56 UV |
| spectraval 1501 / 1511 | 4 mm | 90 mm | ACC 009/2/4_90 |
| spectraval 1501 / 1511 | 12 mm | 2100 mm | ACC 009/2/12_2100 |
| spectraval 1501 / 1511 | 10° optic | ACC 009/2/10° | |
| spectraval 1501 / 1511 | 25° optic | ACC 009/2/25° |
